Raw Garbage Boil & Dry for Livestock Feed Plant
|
It is an innovation in the industry! No cooked ‘broth’, no waste water, no hazardous odours are produced.
|
Boiling, condensing and drying all take place at one time. There is no cooked ‘broth’ and therefore no hazardous odours are produced. During the boiling process, waste steam is generated and conducted to the Teinenpi Deodorizing Apparatus, which decomposes the elements of the smell under high- temperature pyrolysis. Through the process no waste water is produced, since the treated steam is emitted into the atmosphere.
|
|

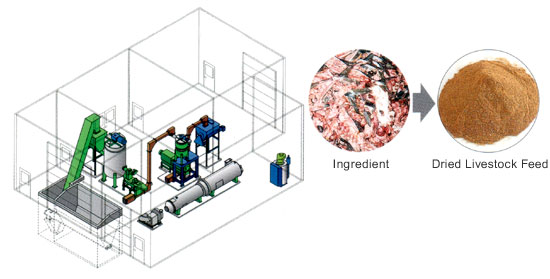

Solid Picture
|
|

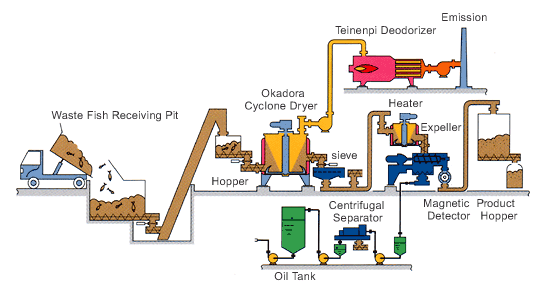

Flow Chart
|
 |
Capacity
(ton/day)
|
Capacity
(kg/hr)
|
Model
|
Total
Electricity
(kw) |
Power
Consumption
(kwh) |
Fuel
Consumption
(l/hr) |
Running
Cost
(Yen/ton)
|
Plant
Space
(m2) |
| 15 |
600 |
SD-2250 II
|
260
|
105
|
46
|
4,225
|
416
|
| 30 |
1,200 |
SD-2250 IIX2
|
395
|
157
|
92
|
3,740
|
486
|
| 50 |
2,100 |
SD-2500 IIIX2
|
615
|
246
|
160
|
3,575
|
674.5
|
| 100 |
4,200 |
SD-2500 IIIX2-2
|
1,135
|
454
|
320
|
3,475
|
1,122
|
Capacity subject to 24-hr operation.
|
|
