OKADORA Standard Type
Direct Loading Type (Automatic Continuous Operation)
Flow Chart

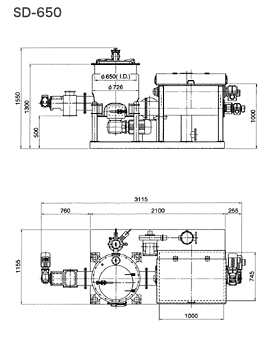

Drawing
Machine Utilities
| Capacity (kg/Hr) |
Capacity (kg/day) |
Steam consumption (kg/Hr) |
Steam pressure (Mpa) |
Fuel consumption (l/Hr) |
Water supply (l/Hr) |
Total electricity (kw) |
Power consumption (kw/Hr) |
|
|---|---|---|---|---|---|---|---|---|
| SD-500 | 10 | 250 | 12 | 0.3 | 0.9 | 25 | 5.9 | 2.9 |
| SD-650 | 25 | 500 | 28 | 0.3 | 2.0 | 60 | 10.5 | 5.7 |
| SD-800 | 40 | 1,000 | 45 | 0.3 | 3.2 | 100 | 16.6 | 8.3 |
Running Costs
| Boiler fuel (yen/Hr) |
Power cost (yen/Hr) |
Tap water (yen/Hr) |
Running cost (yen/Hr) |
R/C Raw garbage (yen/kg) |
|
|---|---|---|---|---|---|
| SD-500 | 32 | 32 | 4 | 67 | 6.7 |
| SD-650 | 70 | 63 | 9 | 142 | 5.7 |
| SD-800 | 112 | 91 | 15 | 218 | 5.4 |
Specifications
| Dryer | Hopper | Auto Discharge Screw | ||||
|---|---|---|---|---|---|---|
| Heat Surface (m2) |
Power (kw) |
Capacity (liter) |
Power (kw) |
Bore (mm) |
Power (kw) |
|
| SD-500 | 0.6 | 2.2 | 200 | 0.75 x 2台 | 150A | 0.4 |
| SD-650 | 1 | 5.5 | 200 | 0.75 x 2台 | 200A | 0.75 |
| SD-800 | 1.5 | 7.5 | 200 | 0.75 x 2台 | 200A | 0.75 |
| Condenser | Blower | Deodorizer | |||
|---|---|---|---|---|---|
| Bore (mm) |
Power (kw) |
Bore (mm) |
Heater (kw) |
||
| SD-500 | 80A | 0.17 | 150A | 1.6 | |
| SD-650 | 100A | 0.17 | 150A | 2.6 | |
| SD-800 | 100A | 0.2 | 200A | 4.2 | |
